Fidelix Products

Products

Reliable control of building automation

FDX Compact

FDX Compact is the cornerstone of our smart BMS. It is a full product family with added flexilibity and ease of installation, making on-site system installation and deployment faster and more efficient. Touch screen interface offers an intuitive and logical user experience in a familiar Android environment.

  • diverse selection of I/O modules for both analogue and digital signals
  • freely programmable PLC with versatile communication options
  • user interface with up to 15,6 inch touch screen

FX-3000-C

Controller, built-in router, IEEE 802.1X support Full control, ultimate compatibility. The FX-3000-C is a building...

Datasheet:

Read more

Compact series I/O modules

16 channel digital input module.

Datasheet:

Read more
Visio 10C tuotekuva

VISIO-10-X

Fdx Compact VISIO-10-X 10.1” touchscreen HMI for Fidelix BMS

Datasheet:

Read more

VISIO-15-X

15.6” touchscreen HMI for Fidelix BMS

Datasheet:

Read more

RS485-C

Extension module

Datasheet:

Read more

Controllers

Versatile solutions for building automation control. Maximum compatibility, fast configuration and setup with added ease of use.

Fidelix FX-Spider tuotekuva

FX-SPIDER-40/10

Central control unit with 40 integrated I/O’s and a 10.1” touch screen. BACnet, Modbus and M-Bus protocols.

Datasheet:

Read more

FX-3000-C

Controller, built-in router, IEEE 802.1X support Full control, ultimate compatibility. The FX-3000-C is a building...

Datasheet:

Read more

I/O modules

Connect, measure and control – reliable I/O modules for digital and analogue signals.

Our I/O modules communicate using Modbus RTU over and RS485 connection, making them also ideally suited for use as an extension module to each, every, and any third party BMS controller.

Fidelix DI-16-C tuotekuva

DI-16-C

Digital open collector output module, 16 inputs, max 100mA/channel.

Datasheet:

Read more
Fidelix DO-8-C tuotekuva

DO-8-C

Digital relay module, 8 outputs.

Datasheet:

Read more
Fidelix DOOC-16-C tuotekuva

DOOC-16-C

Digital open collector output module, 16 inputs, max 100mA/channel

Datasheet:

Read more
Fidelix TRIAC-8-C tuotekuva

TRIAC-8-C

Analogue output module, 8 outputs.

Datasheet:

Read more
Fidelix AI-8 tuotekuva

AI-8

Analogue measurement module, 8 inputs.

Datasheet:

Read more
Fidelix AO-8 tuotekuva

AO-8

Analogue control module, 8 outputs.

Datasheet:

Read more
Fidelix DI-16 tuotekuva

DI-16

Digital measurement module, 16 inputs.

Datasheet:

Read more
Fidelix DO-8 tuotekuva

DO-8

Digital control module, 8 outputs

Datasheet:

Read more
Fidelix COMBI-36 tuotekuva

COMBI-36

Combined I/O module, 20 inputs, 16 outputs.

Datasheet:

Read more
AI-8-C tuotekuva

AI-8-C

Analogue input module, 8 inputs.

Datasheet:

Read more
Fidelix AO-8-C tuotekuva

AO-8-C

Analogue output module, 8 outputs. Connect and control The 8 channel analogue output module is used to generate...

Datasheet:

Read more

Touch screens

Powerful and intuitive touch screen user interfaces for complete control of BMS.



Fidelix multiDISPLAY (C) tuotekuva

multiDISPLAY (C)

Room terminal with a 3.5″ touch screen. Without enclosure.

Datasheet:

Read more
Fidelix MULTIDISPLAY (A) tuotekuva

multiDISPLAY (A)

Room terminal with a 3.5″ touch screen. Can be installed in a box or on a surface. Straight model.

Datasheet:

Read more
Fidelix multiDISPLAY (B) tuotekuva

multiDISPLAY (B)

Room terminal with a 3.5″ touch screen. Can be installed in a box or on a surface. Tilted model.

Datasheet:

Read more

Process controllers

User-friendly process control – both on and off site.

Fidelix Genius tuotekuva

Genius

District heating controller You can order the Genius district heating controller with several different additional features, such as a room display with a touch screen, SMS alarms and remote control access via internet.

Datasheet:

Read more

Room controllers

Freely programmable field controllers for hotel rooms, district heating or small ventilation systems etc.

Fidelix MULTI-24 tuotekuva

MULTI-24

Process controller with 24 I/O-connection points; Modbus slave and master simultaneously.

Datasheet:

Read more

Protocol converters

Seamless connection of versatile equipment and service interfaces.

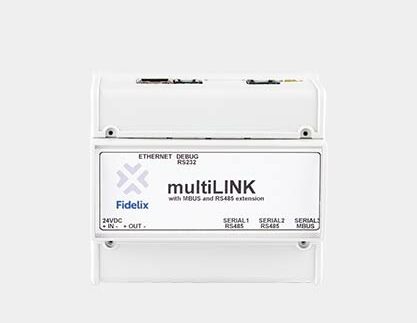

Fidelix MultiLink tuotekuva

MultiLINK

The multiLINK protocol converter can be equipped with several different options. These include the additional M-bus and Modbus connections and the PoE and web server features.

Datasheet:

Read more

Wireless measurement and monitoring

Discover the benefits of wireless measuring & monitoring.

See video

WMBUS-O-T

FX-WMBUS-O-T

Wireless M-BUS Outdoor temperature sensor.

Datasheet:

Read more
WMBUS-OD-PIR

FX-WMBUS-OD-PIR

Wireless M-Bus Occupancy Sensor (PIR)

Datasheet:

Read more

Infastructure

Fidelix FX-AirRECEIVER tuotekuva

FX-AirRECEIVER

Wireless gateway

Datasheet:

Read more
FX-WMBUS-R4-M-LR-A1

FX-WMBUS-R4-M-LR-A1

Wireless M-BUS Repeater (230VAC TWO INTERNALL ANTENNAS IP40)

Datasheet:

Read more
FX-WMBUS-R4-M-LR-X

FX-WMBUS-R4-M-LR-A1-X

Wireless M-BUS repeater(230VAC 1SMA IP40)

Datasheet:

Read more
FX-WMBUS-R4-M-LR-A1-X

FX-WMBUS-RX4-M-LR-A1-X

Wireless M-BUS Repeater (230VAC 2SMA IP40)

Datasheet:

Read more

Wireless sensors

Fidelix FX-WMBUS-E2-VOC tuotekuva

FX-WMBUS-E2-VOC

Wireless M-BUS indoor temperature, humidity, & VOC sensor.

Datasheet:

Read more
WMBUS-O-T

FX-WMBUS-O-T

Wireless M-BUS Outdoor temperature sensor.

Datasheet:

Read more
WMBUS-OD-PIR

FX-WMBUS-OD-PIR

Wireless M-Bus Occupancy Sensor (PIR)

Datasheet:

Read more
Fidelix FX-WMBUS-C-TH tuotekuva

FX-WMBUS-CX-T

Wireless M-Bus Temperature room sensor

Datasheet:

Read more
Fidelix FX-WMBUS-C-TH tuotekuva

FX-WMBUS-CX-TH

Wireless M-BUS indoor temperature & humidity sensor.

Datasheet:

Read more
Fidelix FX-WMBUS-E-CO2 tuotekuva

FX-WMBUS-E2-CO2

Wireless M-BUS indoor temperature, humidity, & CO2 sensor.

Datasheet:

Read more

Accessories

FX-WMBUS-D1-TC tuotekuva

FX-WMBUS-D1-TC

This dongle is used to program FX-WMBUS-R*** repeaters

Read more
FX-ANT-868-HW-DP tuotekuva

FX-ANT-868-HW-DP

Fidelix standard 868MHz dipole antenna.

Read more
FX-OD-CORNER

FX-OD-CORNER

Corner mount bracket for OD series.

Read more
FX-MAG-R4

FX-MAG-R4

Magnet with telescopic shaft.

Read more
FX-BATT-E-B1

FX-BATT-E-B1

Battery back for E2 series 3.6V

Read more
FX-ANT-868-PR-3LW

FX-ANT-868-PR-3LW

Procom antenna. 1.2m and 4db gain

Read more
FX-SMA-N-L100

FX-SMA-N-L100

SMA to N antenna cable 100cm

Read more
SMA to N antenna cable 300cm

FX-SMA-N-L300

SMA to N antenna cable 300cm

Read more
Fidelix FX-EXT-PROBE-OW tuotekuva

FX-EXT-PROBE-OW

Single probe for FX-WMBUS-G2-TH sensor.

Read more
FX-CF-CABLE tuotekuva

FX-CF-CABLE

Configuration cable for G2 sensors.

Read more

Datasecurity

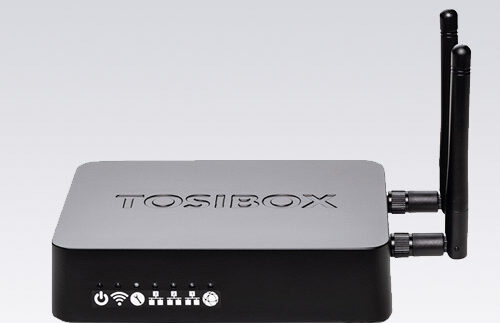

TOSIBOX LOCK 150

Device/router for remote connection

Datasheet:

Read more

Discontinued products

MULTI-16

Room controller with 16 I/O connections.

Datasheet:

Read more
Fidelix DU-10 tuotekuva

DU-10

Door unit.

Datasheet:

Read more
Fidelix FX-WMBUS-G2-TH tuotekuva

FX-WMBUS-G2-TH

Wireless M-BUS temperature & humidity sensor with external probe option.

Datasheet:

Read more
FX-2030 tuotekuva

FX-2030

controller with a 10.4″ touch screen

Datasheet:

Read more
FX-2025 tuotekuva

FX-2025A

Controller with a 10.4″ touch screen

Datasheet:

Read more
Fidelix FX-2025 alakeskus tuotekuva

FX-2025

FX controller without screen.

Datasheet:

Read more

FX-2020

Controller

Datasheet:

Read more
FX-2030A BASIC tuotekuva

FX-2030A BASIC

FX controller without screen.

Datasheet:

Read more
FX-2030A tuotekuva

FX-2030A

FX controller with a 10.4″ touch screen.

Datasheet:

Read more
FX-SPIDER tuotekuva

FX-SPIDER

FX controller with 40 integrated I/O’s and a 5.7″ touch screen.

Datasheet:

Read more
FX-MP tuotekuva

multiDISPLAY Hand Panel

3.5″ handheld Modbus touch screen with RJ25 plug.

Datasheet:

Read more
SI-8 tuotekuva

SI-8

Security module for safety loops with 8 inputs.

Datasheet:

Read more
